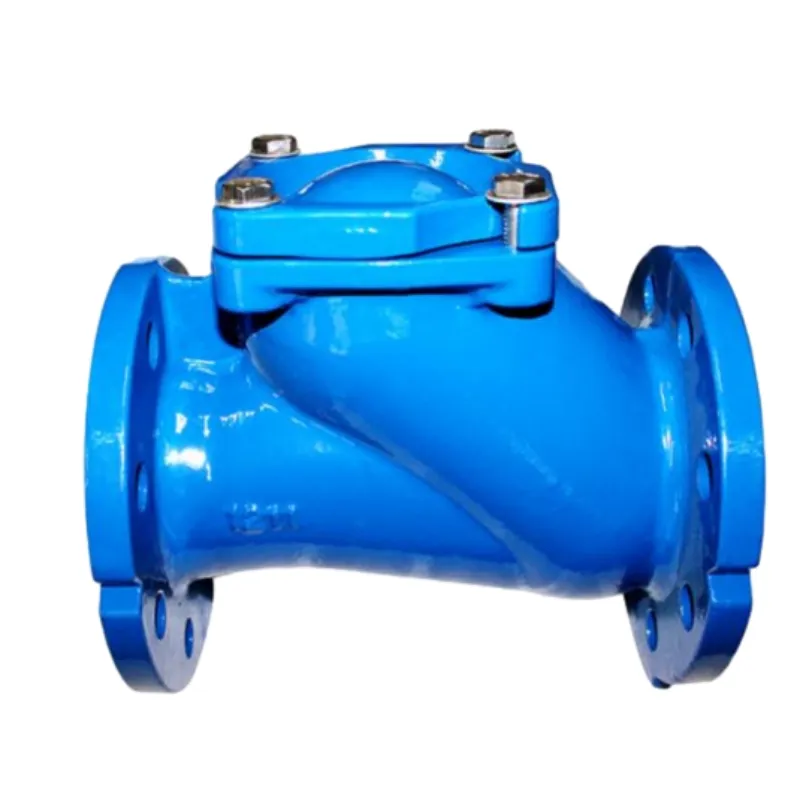

What Is a Ball Check Valve?

When it comes to fluid control systems, one essential component that plays a critical role is the check valve. Among the various types of check valves available, the ball check valve stands out due to its unique design and functionality. In this blog post, we will explore what a ball check valve is, how it operates, and where it is typically used.

Defining the Ball Check Valve

A ball check valve is a type of check valve that uses a spherical ball to prevent backflow in a piping system. This innovative mechanism allows fluid to flow in one direction while blocking any reverse flow, ensuring that the system operates efficiently and safely. The design of a ball check valve is relatively simple yet remarkably effective, consisting of a valve body, a ball, and a seat.

How Does a Ball Check Valve Work?

The operation of a ball check valve is based on the principle of gravity and fluid dynamics. When the fluid enters the valve from the inlet, it pushes the ball off its seat, allowing flow to pass through the valve. If the fluid begins to flow in the opposite direction, the weight of the ball causes it to drop back into its seat, sealing the opening and preventing backflow. This automatic operation makes the ball check valve particularly reliable for various applications.

Advantages of Using a Ball Check Valve

1. Efficient Flow Control: A ball check valve provides a straightforward solution for backflow prevention, allowing good flow rates while maintaining system integrity.

2. Simple Design: The simplicity of the ball check valve makes it easier to install and maintain compared to more complex valve types. This can lead to reduced labor costs and downtime.

3. Durability: Ball check valves are typically made from robust materials, making them suitable for various environments, including both low and high-pressure applications.

4. Versatile Applications: These valves can be used in a wide array of applications, including water and wastewater management, petroleum and chemical industries, and HVAC systems.

Applications of Ball Check Valves

Ball check valves find their place in various industries and applications. Some of the most common uses include:

- Water Supply Systems: To prevent backflow and protect municipal water supplies from contamination.
- Chemical Processing: To ensure safe transit of chemicals without the risk of reverse flow.
- Marine and Industrial Applications: Frequently employed in ballast systems and other heavy-duty applications where backflow prevention is crucial.
- HVAC Systems: Used in heating and cooling applications to manage flow and prevent system damage.

In summary, a ball check valve is a crucial component in fluid control systems, recognized for its effectiveness in preventing backflow. Its simple yet reliable design allows it to be used across various applications, making it a preferred choice for engineers and system designers. Understanding the function and advantages of a ball check valve can significantly enhance the performance and safety of fluid systems.

Whether you are involved in the design, installation, or maintenance of industrial systems, knowing about the benefits and applications of a ball check valve can be invaluable in ensuring the integrity and efficiency of your operations.
