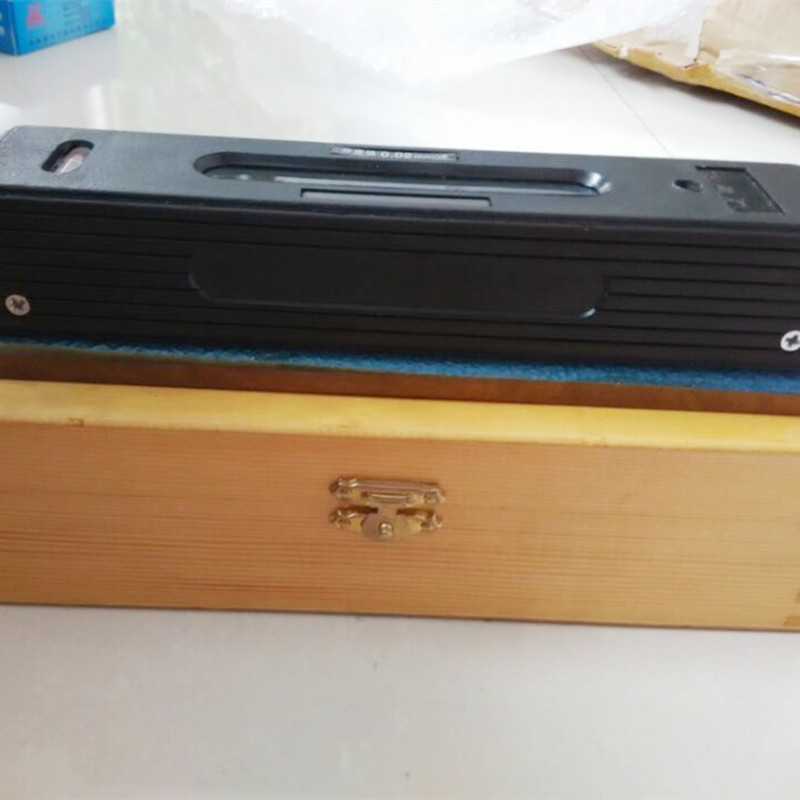

High-Precision Bar Level for Accurate Measurements | Types & China Manufacturer

Bar level tools are precision mechanical instruments widely adopted in fields like petrochemicals, metallurgy, hydropower engineering, shipbuilding, and pipeline installation. Bar level—also known as a level ruler—enables highly accurate horizontal and vertical plane measurements, providing essential data for alignment and construction validation.

1. Market Overview & Industry Trends for Bar Level

According to Market Research Future, the global market for precision leveling tools—including bar level—is projected to grow at a CAGR of 4.7% from 2023 to 2028, driven by advances in construction, machinery installation, and process industries. Demand for specialized level types for harsh environments, increased accuracy, and digital integration is particularly high in China, Germany, and the USA.

Primary segment: Industrial grade bar level for mechanical, civil, and marine usage.
Growth driver: Installation precision for large-scale equipment and pipelines.
Increasing need for digital/laser level rulers in smart factories and infrastructure.

2. Technical Parameters & Comparison Table

The following table summarizes standard bar level specifications frequently used across industries (level types cited from ISO 1938, ANSI B89.3.7M, and major manufacturers in China and Europe):

Model	Sensitivity (mm/m)	Length (mm)	Body Material	Accuracy	Working Temp (°C)	Usage Life	Certifications
Bar Level BL-200	0.02	200	Cast Iron, V-Groove Base	±0.15 mm/m	-10 ~ +60	>10 years	ISO 1938, ISO 9001
Digital Level D-210	0.01	210	Aluminum Alloy, CNC Finish	±0.08 mm/m	-20 ~ +55	>7 years	ISO, ANSI
Machinist Level M-250	0.05	250	Tool Steel	±0.20 mm/m	-10 ~ +40	>12 years	DIN, JIS
Bar Level BL-300-Pro	0.02	300	Ductile Cast Iron, CNC Lapped	±0.12 mm/m	-15 ~ +70	>10 years	ISO 1938, CE

Technical Data & Key Advantages

Material: High-grade ductile cast iron or aircraft aluminum alloy for optimal stiffness, corrosion resistance, and wear protection.
Manufacturing: CNC precision grinding and lapping ensure parallelism and flatness.
Sensitivity: ≤0.02mm/1000mm for industrial-grade levels; ensures ultra-high accuracy (as per ISO 1938/1-2015 standards).
Surface Treatment: Powder coating or chromate plating for lifetime anti-corrosion.
V-Groove Base: Enables stable measurement on cylindrical shafts, common in pump/motor alignment.
Bubble Vial/Optical/Electronic: Ranges from classic bubble-type to advanced digital laser levels, broadening application types.

3. Manufacturing Process of Bar Level (with Diagram)

Production Flow for Bar Level

Step 1: Selection of high-strength ductile iron/aluminum alloy raw materials.
Step 2: Advanced casting/forging forms the body; heat-treated to minimum HRC 50 for durability.
Step 3: CNC precision cutting, surface lapping & grinding; V-groove for shaft use.
Step 4: Assembly of high-sensitivity bubble vials (sometimes digital sensors); calibrated and tested according to ISO 1938/1 and ANSI standards for accuracy.
Step 5: Anti-corrosion treatment, packaging, and shipment.

(See sample manufacturing video)

4. Application Scenarios & Industry Advantages

The bar level is indispensable in:

Petrochemical & Chemical Plants: Used for horizontal/vertical installation of critical pipelines. Its corrosion-resistant finish allows use with saline, acidic and volatile process lines.
Hydropower & Water Supply: For base and dam installation requiring ultra-high plane accuracy. The V-groove base allows quick shaft mounting.
Steel & Metallurgy: During mill roll calibration, bar level ensures parallel axis setup, reducing vibration and wear.
Precision Machinery & Shipbuilding: For fixture base setting, engine room alignment, and pump/motor shaft installation.
Construction & Surveying: Used as level ruler to check ground or beam levelness—both on-site and in QC laboratories.

Industry Data: A recent survey by the China Instrument Association found that bar level saves 23% on calibration time over conventional bubble levels in large chemical and power installations.

5. Technical Superiority and Manufacturer Comparison

Modern bar level models deliver outstanding advantages over traditional bubble/spirit levels and cheaper plastic alternatives:

High Precision: Sensitivity better than 0.02 mm/m—tenfold improvement over standard builder’s levels; crucial for baseplate and alignment jobs.
Durable Construction: CNC-machined, stress-relieved ductile iron/aluminum bodies for excellent anti-deformation—service life over a decade (per manufacturer tests, ISO fatigue benchmarks).
Corrosion Protection: Multi-step surface treatment (oxide, phosphating, powder coat).
Calibration: Factory-certified, traceable to ISO, CE, and ANSI for premium brands (with data guarantee certificates).
Custom Features: From dual-bubble vials, digital output, to magnetic bases and laser-feedback for real-time analysis.
Ergonomics: Balanced weight distribution, non-slip handles, readable scales for tough field usage.

Manufacturer Highlights

STR Machinery (China): Offered with ISO 1938/1 and CE certification, provides full customization, OEM/ODM services, 30+ global partners.
Mitutoyo (Japan): Famous for advanced digital level ruler models and global standardization.
Starrett (USA): Well-known for machinist levels, broad portfolio; slightly higher price range but reliable performance.

Note: Bar level manufacturing is concentrated in China, Japan, and Germany. According to industry statistics (SMM 2023 Market Data), China exports account for ~45% of global supply, with increasing technical sophistication.

6. Tailored Solutions & Customization Process

For engineering contractors and MRO users, tailored bar level is available for:

Special lengths (150mm-1000mm), section profiles, or custom V-groove forms.
Extra-high temperature or strong acid/alkali environments—special body coatings or sealed vials.
Magnetic base design for quick attachment to machine and pump frames.
Dual/Triple vial angles: For simultaneous X/Y/Z plane readouts.
Logo, traceability code, and ISO/ANSI-conforming test certificate.
Express on-site calibration and repair service (4–7 days typical delivery, 1–2 year warranty standard).

Case Example: In 2022, STR Machinery provided 600+ custom bar level units to a leading petrochemical firm for critical reactor installation—each unit laser-engraved with asset codes and factory ISO/CE certificates.

7. Customer Experience: Use Case & Feedback

Level Ruler in Action: China Lianhua Engineering (ref: Project #LH-23-113, 2023) reported:

Scenario: Alignment of multiple 80m process pipelines (DN800) in a coastal salt plant.
Solution: 26x STR BL-200 bar level units deployed—magnetic base and anti-corrosion custom models.
Results: Reduced installation cycle by 5 days, achieved pipeline horizontal deviation <0.05 mm/m, 100% passing post-QC.
Customer quote: “The bar level allowed for precise horizontal adjustment during brine pipeline installation. Its V-groove and anti-corrosion build performed perfectly in the field, saving our project significant rework.”

Repeat orders since 2023; ISO fit certificates delivered each batch.

8. Certifications, Support & Delivery

Standards: Complies with ISO 1938, ISO/IEC 17025, ANSI B89.3.7M, and CE as relevant.
Quality Control: 100% tested on factory metrology equipment; individual certificates upon request.
Delivery: Typical time 5–10 working days for standard models; 10–15 days for customized bulk orders.
Warranty: 1–2 years standard; extended warranty/repair plans optional.
Support: 24/7 technical email and chat support; on-site calibration available in 20+ countries.

9. FAQ about Bar Level: Professional FAQ

1. What materials are most recommended for bar level bodies?: Ductile cast iron is most suitable due to its high stiffness, stability, and excellent flatness after CNC machining and lapping. Aluminum alloy is preferred for weight-sensitive jobs; both must offer anti-corrosion treatment for harsh environments.
2. What is the sensitivity, and why does it matter in a level ruler?: Sensitivity refers to the smallest gradient a bar level can detect (e.g., 0.02 mm/m). Higher sensitivity allows swift, precise adjustment during high-accuracy installation, especially for heavy equipment and pipeline alignments.
3. Which international certifications do your bar levels meet?: STR bar level models meet ISO 1938/1, ISO 9001, CE, and ANSI B89.3.7M requirements. Each batch comes with serial number-based metrology certificates and traceability records.
4. What types of bubble vials are used?: We use borosilicate glass vials flled with UV-resistant, temperature-stable liquid, ensuring accuracy across -20°C to +60°C. Digital vials with laser sensors and OLED readouts also available for R&D/industrial process monitoring.
5. Can bar level be used on curved or shaft surfaces?: Yes, models equipped with a V-groove base are optimized for cylindrical shafts—enabling stable, accurate readings on pipes, rolls, or axles.
6. How is calibration performed and at what interval?: Each bar level is calibrated against a reference plane and checked using a goniometer/laser interferometer in compliance with ISO/IEC 17025. Annual recalibration is recommended for industrial/critical measurement uses.
7. What are the standard delivery and after-sales terms?: Standard models ship in 5–10 days with 1-year warranty; extended service includes express calibration, defect replacement, technical support, and global shipment with 24/7 response.

10. References & Industry Authority Citations

STR Machinery Bar Level Product Page
Market Research Future (2023), “Global Market for Precision Levels,” Link
ISO 1938-1:2015 Geometrical product specifications (GPS) - Dimensional measuring equipment
China Instrument Association, “Recent Trends in Leveling Tools,” Link
SMM Info Center, “Bar Level Export Statistics 2023,” Link
Practical application forum: Engineering Toolbox: Level Accuracy Specs
