Runout Tester

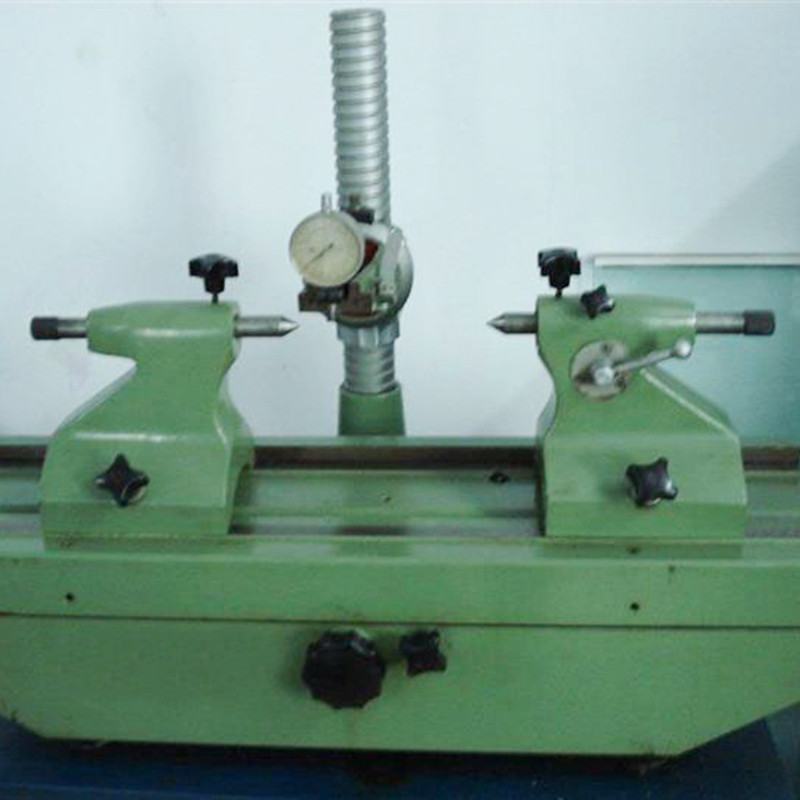

The pendulum instrument is mainly used to measure the radial runout error of shaft parts. The instrument uses two thimbles to locate the shaft parts, rotate the measured parts, and the probe directly measures the radial runout error of the parts in the radial direction of the measured parts.

CONTACT NOW PDF Download

Details

Tags

Product Advantages

The instrument has the advantages of simple structure, convenient operation, quick loading and unloading of the tested parts by the hand handle of the top seat, and high measuring efficiency.

Product Description

surveying operation rules
1.The deflection tester is a precise testing instrument. The operator must master the operation skills of the instrument, maintain it carefully, and assign a special person to use it.

2.The deflection tester must always keep the equipment in good condition. The installation of the equipment should be balanced and reliable. The guide surface should be smooth and free of bumps. The coaxiality tolerance of the two centers should be within the range of L = 400mm. The coaxiality tolerance of a and B directions should be less than 0.02mm.

3.Before the workpiece inspection, check the accuracy of the deflector with L = 400mm inspection rod and dial indicator, and use it only after it is qualified.

4, When detecting the workpiece, it should be handled with care. No tool or workpiece is allowed to be placed on the guide surface.

5, After the completion of workpiece inspection, the instrument shall be maintained immediately. The guide rail and top sleeve shall be oiled to prevent rust, and the surrounding environment shall be kept clean.

6, A specially assigned person shall be assigned to inspect the accuracy of the deflector at the end of each month to ensure that the equipment is in good condition and record the actual measurement.

Packing of deflection tester: wooden case (also can be customized according to user's requirements)

Color of deflection tester: green and blue are generally selected for deflection tester (or according to user's requirements)

Product Parameter

size mm	center height mm	diameter mm	parallel um	vertical um
300	170	270	<=8	<=5
300	300	560	<=8	<=5
500	250	460	<=8	<=5
500	300	560	<=8	<=5
1000	250	460	<=10	<=8
1000	300	560	<=10	<=8
2000	230	400	<=30	<=20
