Parallel Ruler

Magnesia aluminum rulers are mainly divided into two types according to different industries: heavy industry rulers and light industry rulers. Heavy industry rulers are mostly made of cast iron and cast steel materials, while light industry rulers are mostly made of materials such as magnesium aluminum, alloy steel, and stainless steel.

CONTACT NOW PDF Download

Details

Tags

Product Description

Magnesium aluminum ruler points:

1.Application of magnesium aluminum ruler: installation, leveling, maintenance, and measurement of textile machinery.
2.Magnesium aluminum ruler is lightweight: a 3-meter-long ruler weighs only 9kg.
3.Magnesium aluminum ruler is convenient to use: a 6-meter ruler allows workers to easily move and measure.
4.Magnesium aluminum rulers are not easily deformed: the bending point of general steel materials is 30kg/mm2, and that of general cast iron parts is 38kg/mm2. The bending point of this material reaches 110kg/mm2, and its bending resistance index far exceeds other materials.
5.Magnesium aluminum rulers are easy to store: they can be hung or placed flat, and their straightness and parallelism will not be affected by long-term flat placement.
6.Magnesium aluminum rulers are not easy to rust: do not apply oil during use, do not use for a long time, gently apply a thin layer of general industrial oil when storing.

Place of Origin：Hebei, China

Warranty：1 year

Customized support：OEM, ODM, OBM

Brand Name：Storan

Model Number：3002

Material：Aluminium Magnesium Alloy

Accuracy：customized

Operation Mode：customized

Item Weight：customized

Capacity：customized

Material：Material Aluminium Magnesium Alloy

Specification：see attached form or customize

Physical performance：47kg/mm

Extensibility：17%

Yield point：110kg/mm2

Working temperature：(20±5)℃

Precision grade：1-3

Packaging：plywood box

Lead time

Quantity (pieces)	1 - 1200	> 1200
Lead time (days)	30	To be negotiated

Product Detail Drawing

Product descriptions from the supplier

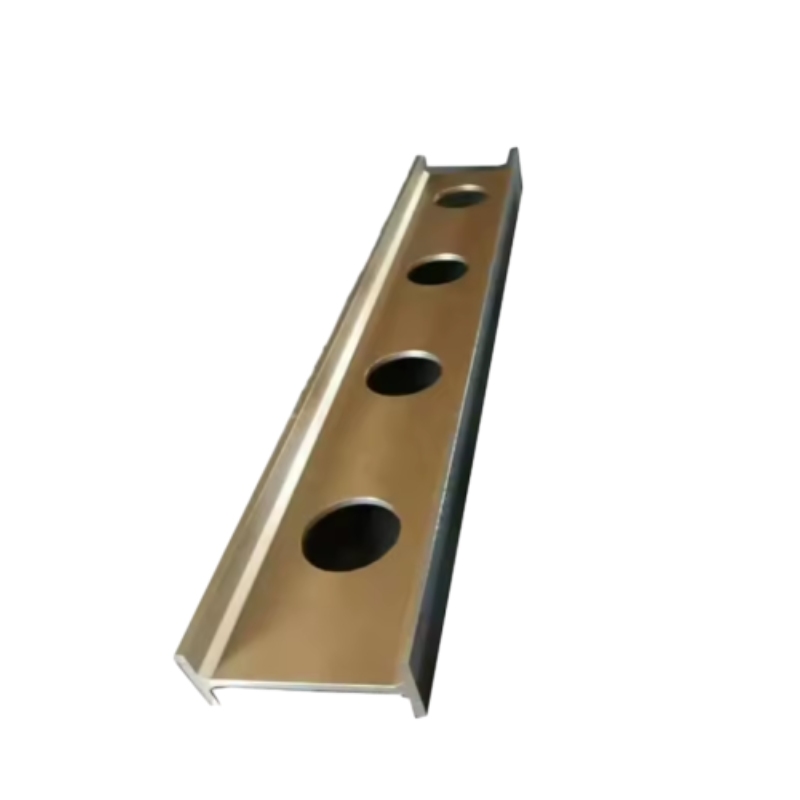

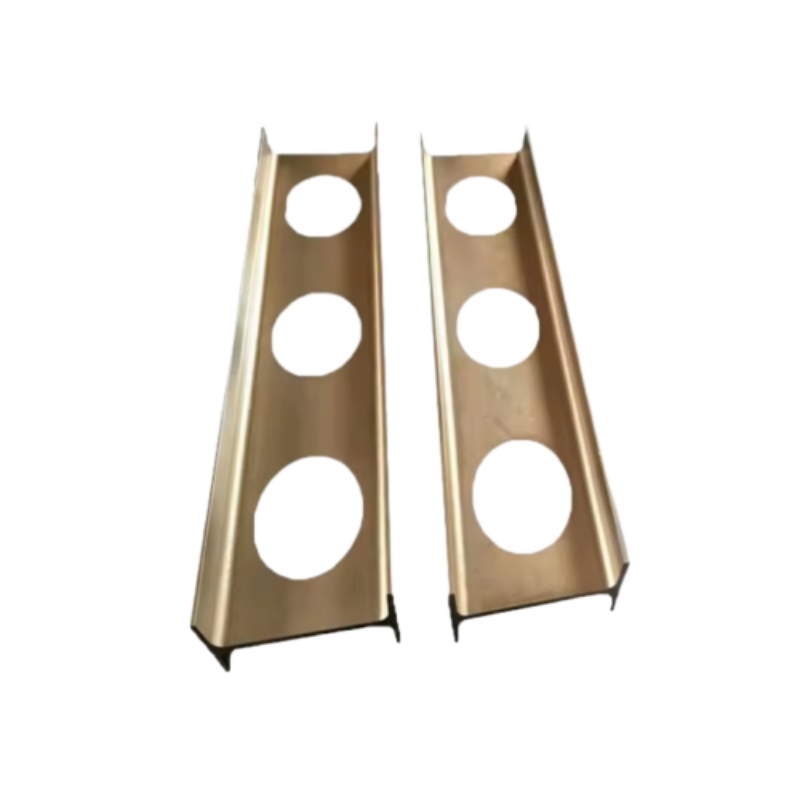

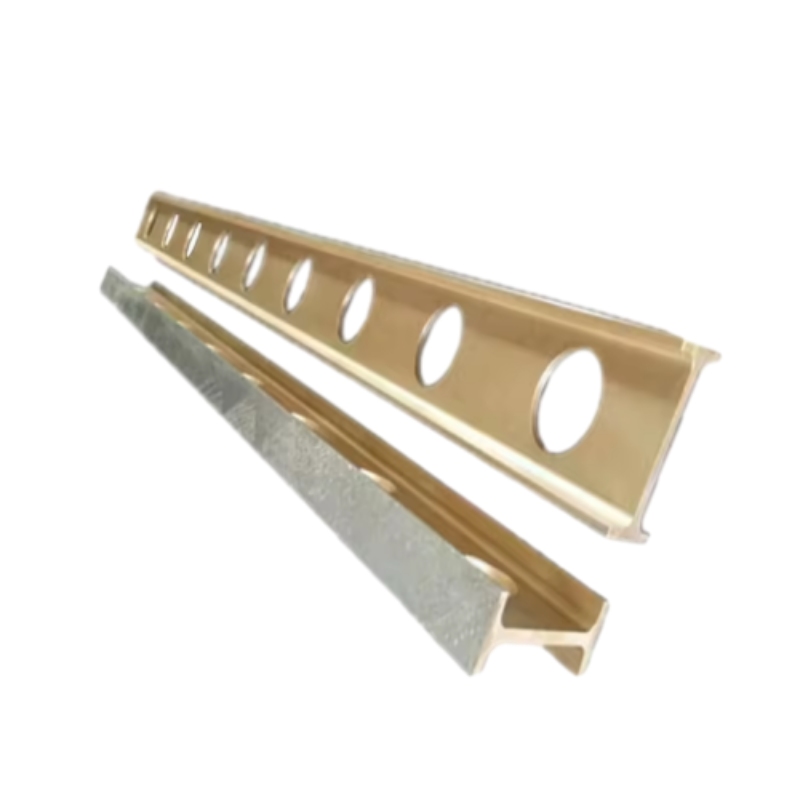

Aluminum Magnesium Alloy Precision Ruler:

Aluminum Magnesium Alloy Parallel Ruler is used for workpiece inspection, measuring, marking, equipment installation, and industrial construction project.

* Easy Storage: can hanging or horizontal placement, will not affect its straightness and parallelism because of lone-time placement.

* Not Easy to Rust: do not use oiled during using, if not used for a long time, apply a thin layer of industrial oil and then store.

* Packing: plywood box is commonly used; fine packaging is also available.

RELATED NEWS

Example Image — Understanding Ring Gauges for Precision Measurement

A ring gauge set is an essential tool for professionals in the manufacturing and mechanical industries, offering a reliable and accurate way to measure the dimensions of cylindrical components.

View More

Specification (mm)	L	500	1000	1500	2000	2500	3000	3500	4000
	H	60	60	100	100	150	150	150	150
	A	30	30	40	40	80	80	80	80
	B	6	6	6	8	8	8	8	10
	R	4	4	4	6	6	6	6	8
Precision Grade		1	1	1	1	2	2	3	3
Beeline (mm)		0.006	0.01	0.015	0.018	0.044	0.048	0.112	0.128
Parallelism (mm)		0.008	0.016	0.022	0.027	0.066	0.072	0.168	0.26
Weight (kgs)		0.8	1.5	4.5	6	17.5	21	24.5	28
