Morse Taper Gauge

The Morse taper gauge is an important measuring instrument that plays a key role in mechanical engineering. Their principle of operation is based on the standardized taper specification of the Morse taper. The Morse taper gauge is a precisely designed plug and ring gauge that fits into the inner or outer taper of the part being inspected. In terms of application, they are widely used to check the taper of mechanical parts such as tool shanks and machine tool spindle bores to verify compliance with standards. In the machining process, deviations from the newly machined taper can be detected in a timely manner, guaranteeing the accuracy of the fit between the parts and the reliability of the connection. With accurate measurement and judgment of taper compliance, Morse taper gauges play a vital role in ensuring product quality, achieving interchangeability of parts and enhancing production efficiency. Care must be taken during use to ensure that the gauge and the part being measured are intact, resulting in accurate and reliable measurements.

CONTACT NOW PDF Download

Details

Tags

Product Maintenance

1, dental gauge is also a part of the gauge, dental gauge after use, should be cleaned up in time to measure the part of the adherents

2, the production site in the use of dental gauge, should be held lightly to prevent bumping and damage to the measuring surface.

3, It is strictly prohibited to use the gauge as a cutting tool to force screwing into the thread or extruding the thread.

4, the tooth gauge is strictly prohibited non-metrological staff to use at will.

Product Detail Drawing

Product Parameter

norm	unit	accurate
1	set	0rank.1rank.2rank
2	set
3	set
4	set
5	set
6	set

Mohs measuring gauge

norm	unit	accurate
1	set	0rank.1rank.2rank
2	set
3	set
4	set
5	set
6	set

BT gauge（7：24）

norm	unit	accurate
30	set	（0rank.1rank.2rank）
40	set
50	set
45	set
50	set
55	set
60	set
65	set
70	set
75	set
80	set

metric gauge

norm	unit	accurate
4	set	0rank.1rank.2rank
6	set
80	set
100	set
120	set
160	set
200	set

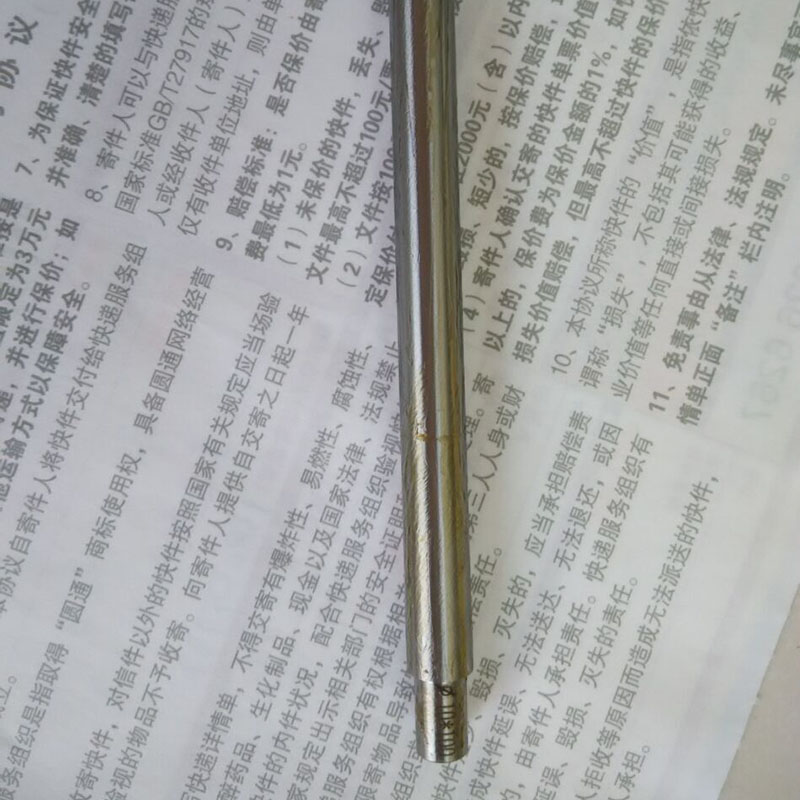

Industrial measuring rods

norm	unit	accurate
Φ0.2-Φ10 minimum interval0.005	unit	0.001、0.002
Φ25-Φ39	unit
Φ40-Φ49	unit
Φ50-Φ64	unit
Φ65-Φ85	unit

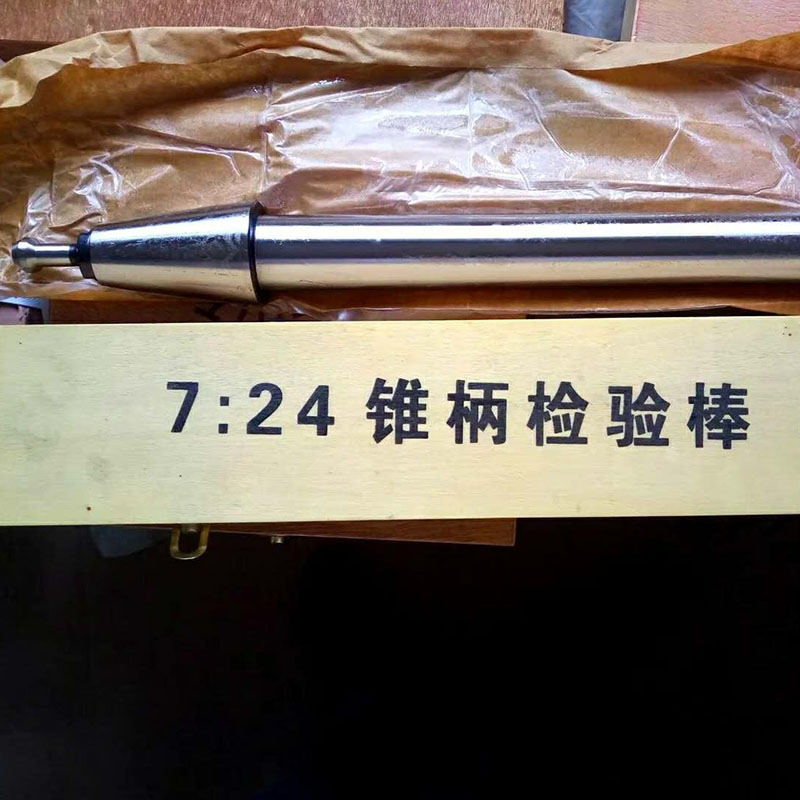

Direct Test List

norm	unit	Measuring length	accurate
Φ10	unit	100mm	0rank、1rank
Φ12	unit	150mm
Φ20	unit	250mm
Φ30	unit	300mm
Φ30	unit	350mm
Φ42	unit	500mm
Φ50	unit	600mm
Φ60	unit	750mm
Φ70	unit	800mm
Φ80	unit	10000

On-site pictures

digital taper gauge

morse taper gauge

round taper gauge

taper gauge 1 15mm

taper gauge set
