Leveling Mounts

Product name: Anti vibration pad iron Product alias: shock-absorbing pad iron cast iron shock-absorbing pad iron circular shock-absorbing pad iron The shock-absorbing pad iron enables various types of machine tools for rough and precision processing to form production units, adapting to the development of logistics technology. Scope of application of machine tool shock-absorbing pad iron: metal processing machine tools, forging machine tools, textile machinery, printing machinery, food processing machinery, rubber machinery, wire production machinery, cable machinery, packaging machinery, generators, and heavy equipment.

CONTACT NOW PDF Download

Details

Lead time

Quantity (pieces)	1 - 100	> 100
Lead time (days)	5	To be negotiated

Product Overview

Applicable	Metalcutting machines, rubber and plastic machines, printing machines, wire machines and so on
Products name	Machine and rubber shock absorption pad iron anti vibration pad foot machine mount
Material	rubber and steel
Size	S77/S78/S79
Application	CNC Machine Tools
Function	Machine anti-vibration

1.It isolators the vibration and shock of the machine from the floor.It can also reduce the

influences from other machine.

2.Machine are stationary on the floor without anchors.It keeps the machine in its

position.Therefore the installation cost and time can be greatly saved.

3.The machien tools level can be large range adjusted,easily and fast.

4.Elastomers is make of Nitvile rubber compound,It can resist oil and refrigerant.

Application

Metalcutting machines.Metalforminh machines.Rubber and plastic machines,Printing

machines,Wire machines,Packing machines,Foodprocess machines.Generator and heavy-dutymachines.

Usage of machine tool shock-absorbing pad iron: Place the required pad iron under the machine tool anchor hole, insert the bolt, rotate it to make solid contact with the load-bearing plate, and then adjust the machine tool horizontally (rotate the bolt clockwise to raise the machine tool); After adjusting the level of the machine tool, tighten the nut and fix it in a horizontal state. Due to the creep phenomenon of rubber, when using the pad iron again, adjust the level of the machine tool after two weeks.

Product Instructions

Place the mounts under the anchor hole of the machine.Insert the bolt into the screw hole of mount.And screw it in until it reacher the bearing plate.Then adjust the level ofmachine.Finally tighten the nuts.

materail	cast iron,rubber
color	yellow,green,black
application	machine tools

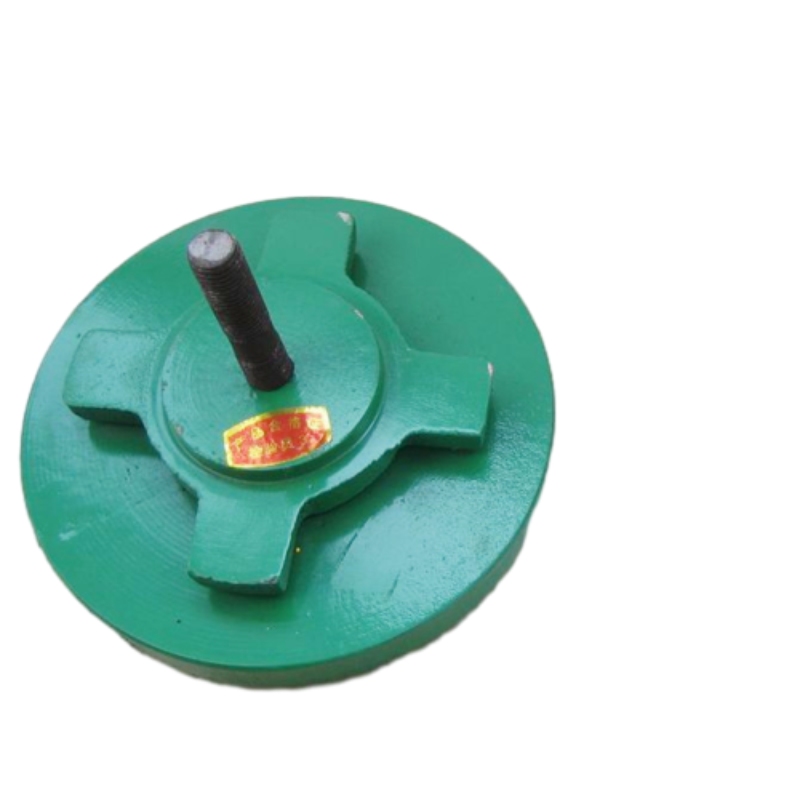

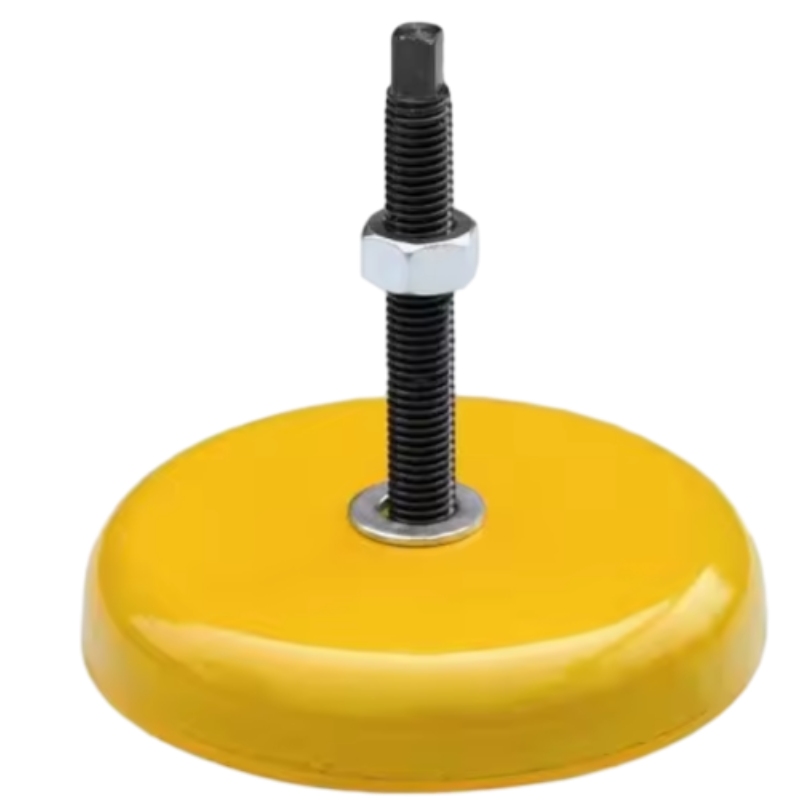

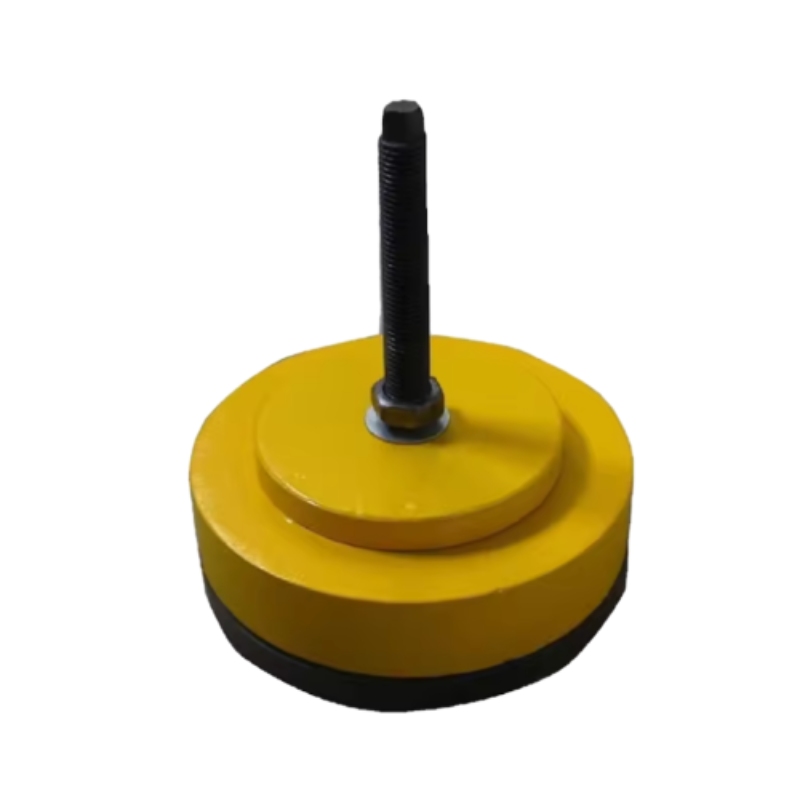

Product Detail Drawing

level

level ruler

level types

level wholesale

leveling mounts
