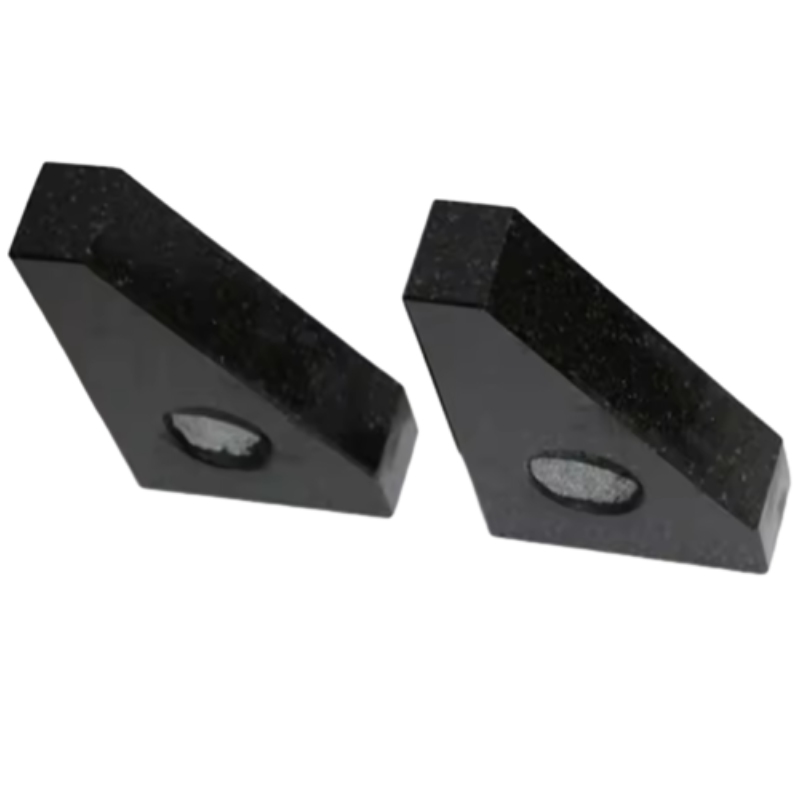

Granite Square Ruler

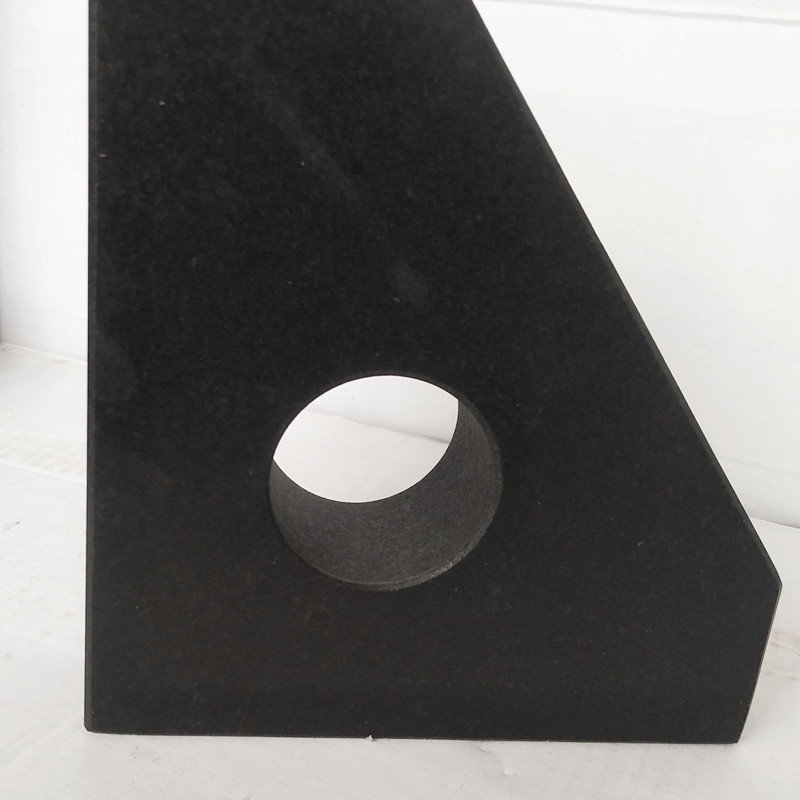

The granite right angle ruler is suitable for detecting verticality. The plane accuracy standard is GB6092-85, and the verticality standard is GB6092-85. To reduce weight and facilitate processing, weight reduction holes have been added. The tolerance on the side is 0.02. The granite right angle ruler is mainly used for measuring the flatness, verticality, and straightness of workpieces. The main mineral components of granite square ruler are plagioclase, plagioclase, small amounts of olivine, biotite, and trace amounts of magnetite. It has a black color and structural code. After billions of years of aging, it has a uniform texture, good stability, high strength, and high hardness, and can maintain high accuracy under heavy loads. The granite square is suitable for industrial production and laboratory measurement work. Specification of granite square ruler: (Special specifications need to be customized).

CONTACT NOW PDF Download

Details

Lead time

Quantity (pieces)	1 - 1200	> 1200
Lead time (days)	8	To be negotiated

Granite Square Master tri angle ruler 00 class

The Specification
Name	Granite Square Master tri angle ruler 00 class
Material	Granite
Proportion	2970-3070 Kg/m²
Compressive Strength	245-254 Kg/m²
Modulus of Elasticity	1.27-1.47N/mm²
Linear Expansion Coefficient	4.6×10-6/℃
Water Absorption	0.13%
The Hardness	HS70
Usage	Industrial production and laboratory measurement
Package	export package plywood

Product Parameter
